Active Grille Shutter Assembly (AGS) Flatness Measurement Scheme
Customer Demand
Based on the provided samples, measure the corresponding dimensions. (1.Measure the flatness of two planes, P1 and P2, and select 8 measurement points for each. 2.The flatness tolerance of the product is 0.01mm. Point laser measurement is required.)

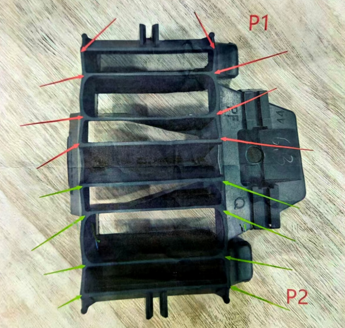

Product physical image
High Precision Active Grille Shutter Assembly (AGS) Flatness Measurement
Optical Flatness Detection for Active Grille Shutter Assembly (AGS)
Measuring Result
Test results

1.Measurement process video

.

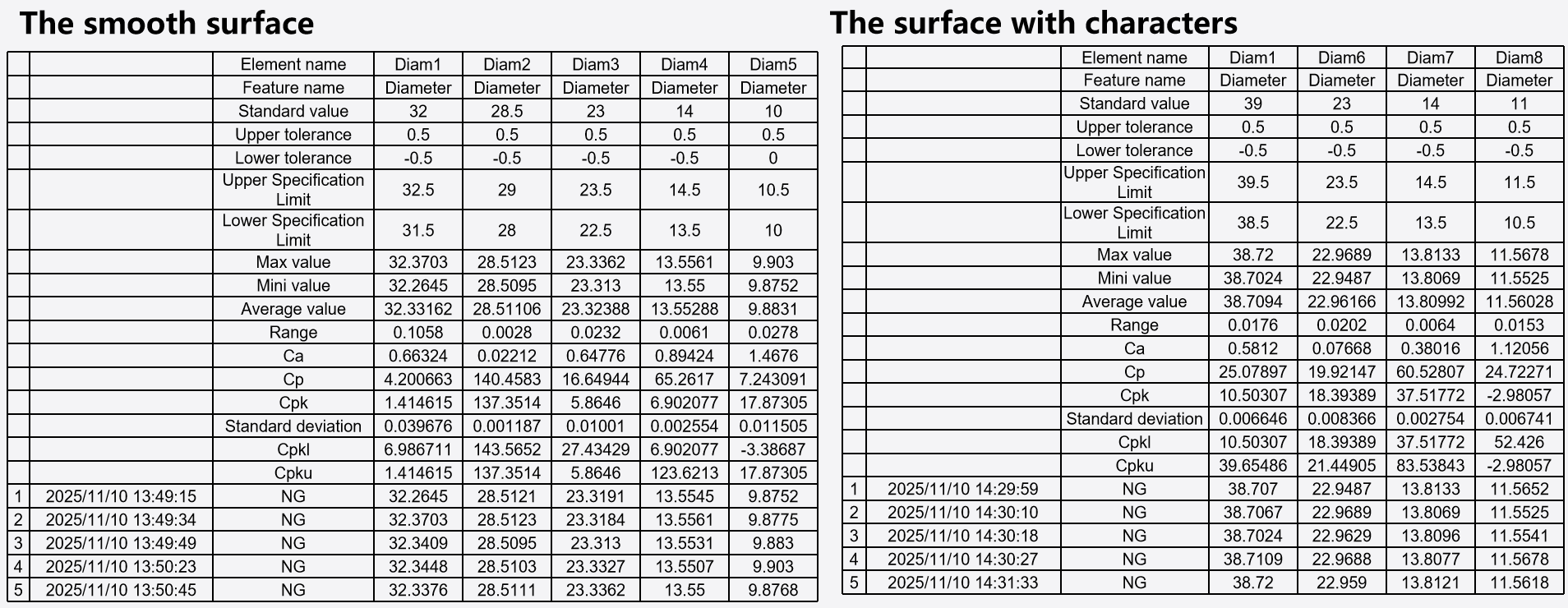

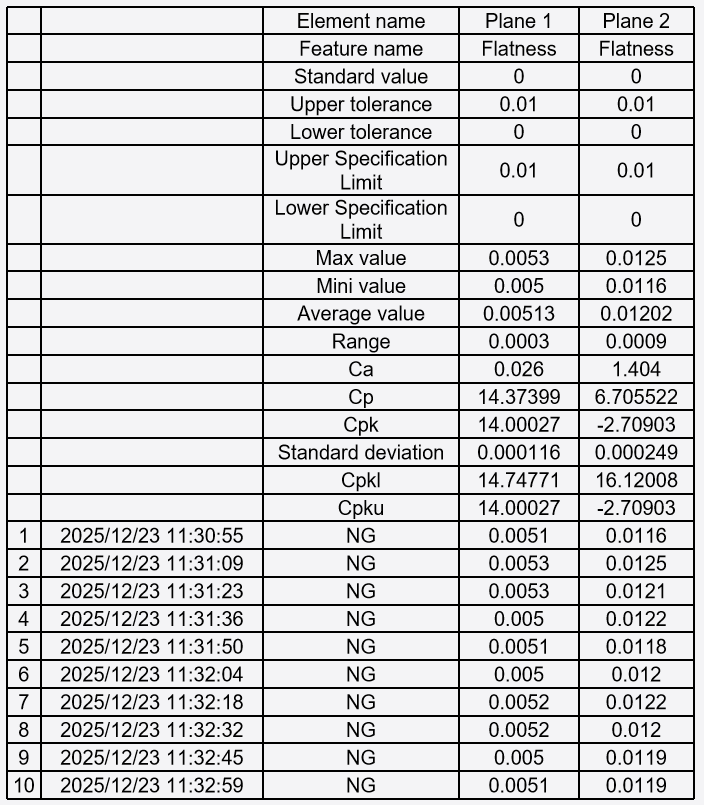

2..Measured data


Test Conclusion
COBEKK recommends using a point laser to measure the flatness of plastic parts.
