Fully Automatic Operation · Micron-Level Precision · Cross-Industry
The Core Component for Quality Inspection in the Industrial
4 Key Highlights to Reimagine Measurement Experience
1. One-Click Startup, Unattended Measurement

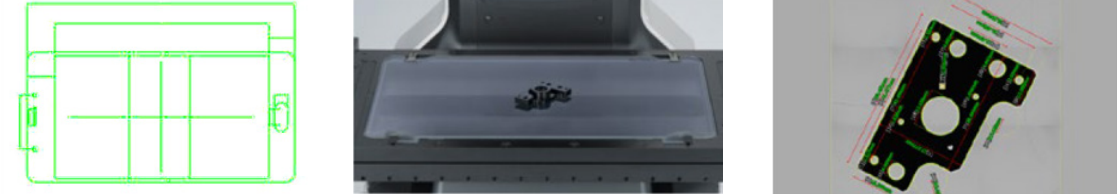

l High-precision positioning of XYZ axes, program matching with workpiece coordinates, and automatic execution of measurement workflows.
l CAD/Gerber template directly imported, coordinates quickly matched, eliminating manual alignment efforts.
l CNC fixed coordinate system mode enables fast batch workpiece inspection, greatly improving detection efficiency.
l Once programmed, the process can be reused, reducing operational barriers and labor costs.
2. Precise Control, Down to the Finest Details
l High-resolution zoom lens + 10-megapixel color camera ensures long-term stable measurement accuracy.
l Ultra-high-precision ruler (0.0005mm resolution) enables force-controlled measurement of dimensions.

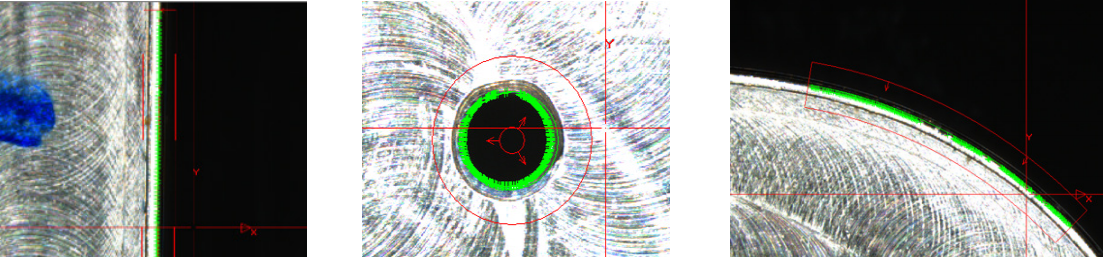

l Geometric dimensioning and tolerancing (GD&T) inspection accuracy reaches the micron level, with maximum deviation controlled within 0.002mm.
l Repeatability: X/Y axes ±0.20μm, Z-axis 40+H/200μm, ensuring measurement consistency.
3. 80+Tools, Fully Secured Data Processing

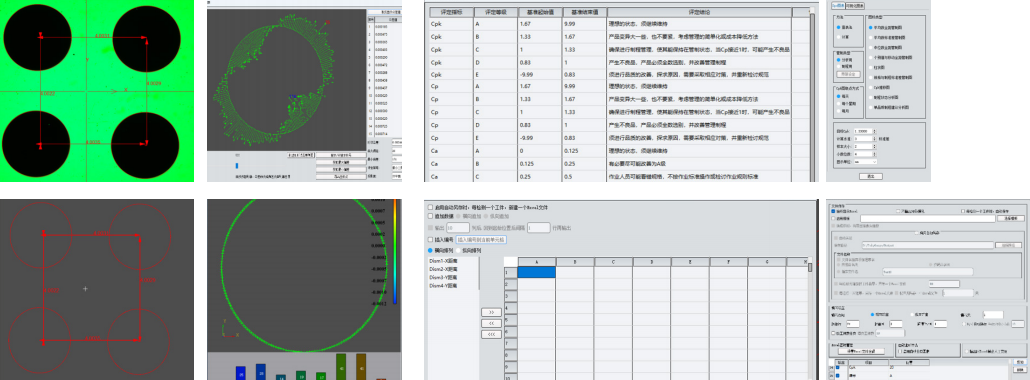

l Automatic generation of SPC analysis reports, intelligent identification, and 80+ analysis tools for GD&T.
l Supports Q-DAS data transmission and remote data docking.
l Visual management charts (average full-range chart, Cpk trend chart, etc.) for clear process status.
l Customizable Excel report output, optional horizontal/vertical arrangement, automatic saving and batch export.
4.Multiple Light Sources & Optics to Address Multi-Dimensional Measurement Needs

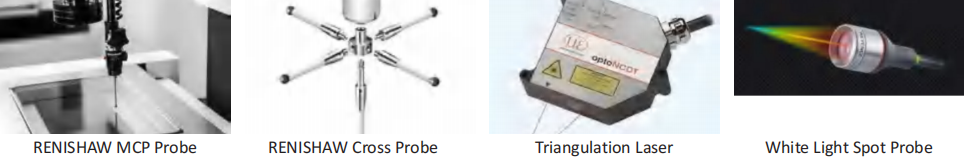

Equipped with coaxial light, ring light, confocal, and other composite sensors, it supports multi-dimensional measurements (height, depth, flatness, etc.), flexibly adapting to complex inspection scenarios.
Empower 3C Manufacturing, Precision Control at Every Detail

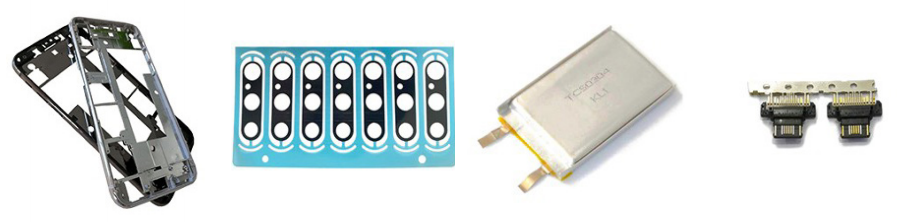

Tailored to the precision, small size, and high-volume characteristics of 3C products, the AF Series enables fast batch inspection—covering external dimensions, internal structures, individual components, and assembled products. It precisely controls tolerances, helping consumer electronics upgrade quality.
Excellence in Details
Intelligent Lighting System: Spherical LED parallel transmissive light + 4+8 zone controllable reflective light (255-level dimming), easily handling high-reflective and matte surfaces. Precision Drive System: AC servo motor paired with precision guide rails, ensuring stable operation with repeatability up to ±0.20μm for consistent measurement results.
Adapt to Machinery Manufacturing, Stable Support for Precision Processing

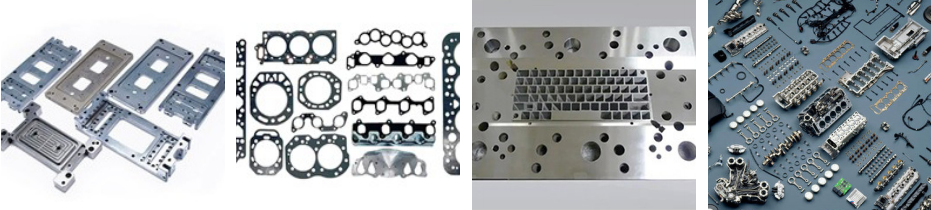

Addressing the complex structures and high-precision requirements of mechanical and automotive parts, it enables comprehensive inspection of multi-dimensions and GD&T. It offers high-efficiency batch measurement and consistent data, providing reliable guarantees for component processing accuracy.
Full Industry Coverage, Boundless Precision

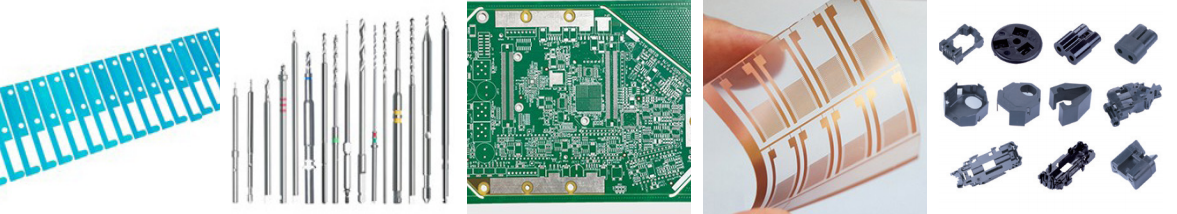

From precision inspection of medical devices to batch control of home appliances, from dimensional verification of connectors to tolerance testing of hardware parts—the AF Series meets customized measurement needs across industries with flexible adaptability and stable performance.
