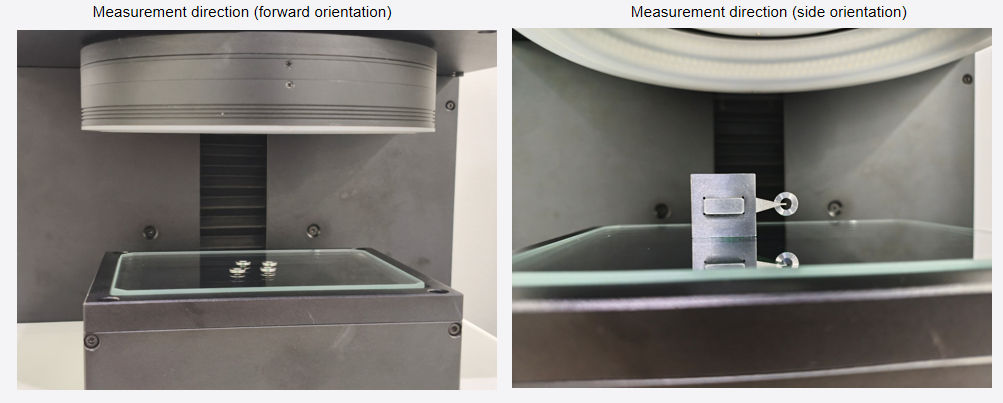

1.Small metal washer measurement direction
2.Small metal washer measurement video：

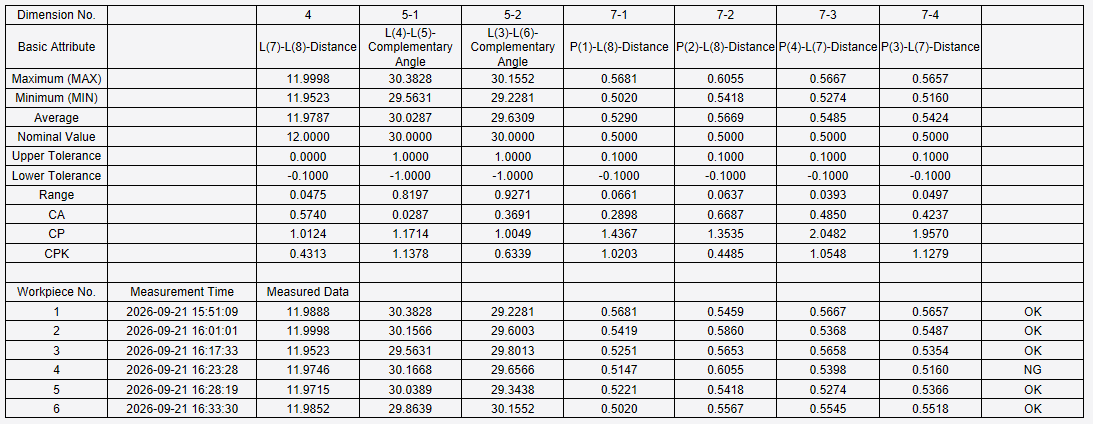

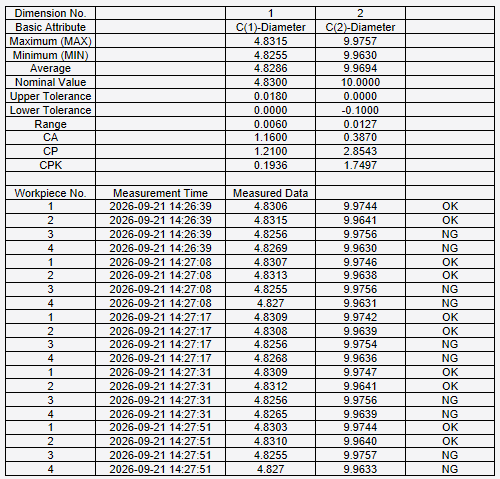

3.Measurement data of the small washer

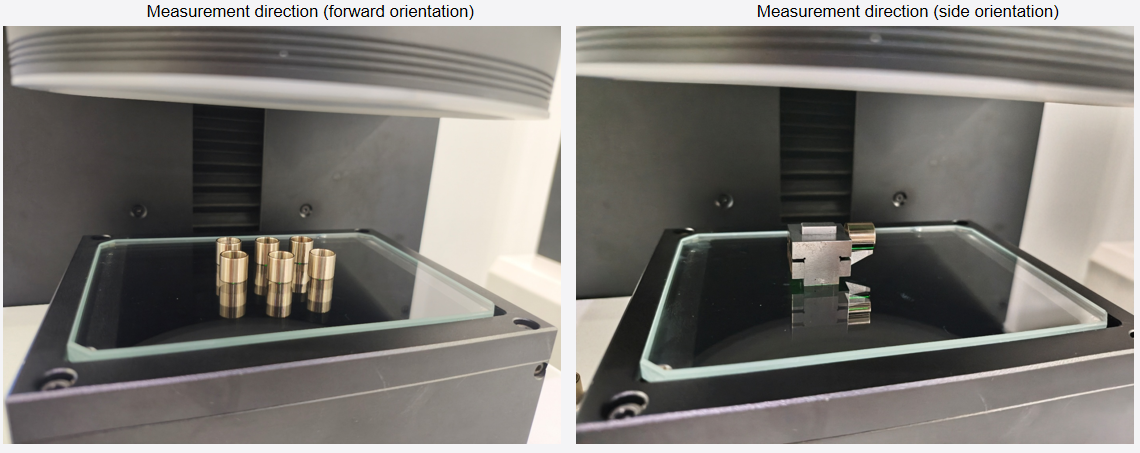

4.Metal bushing measurement direction
5.Metal bushing measurement video

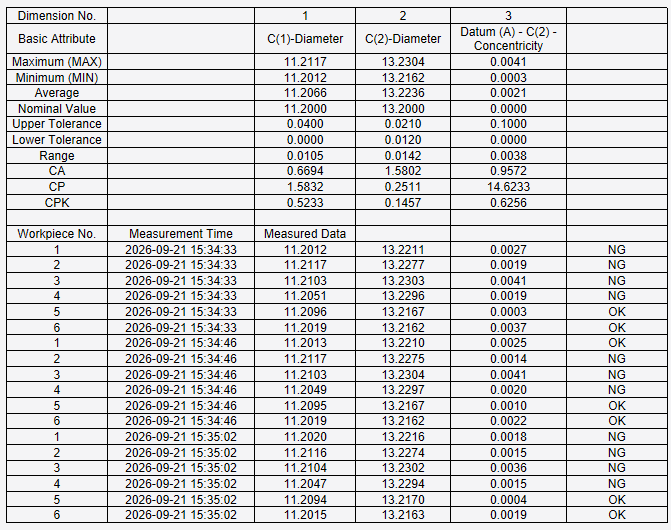

6.Measurement data of the small washer（Forward orientation）

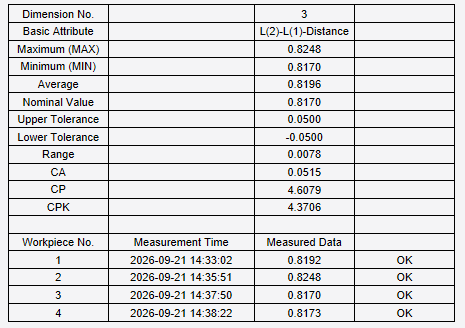

7.Measurement data of the small washer（Side orientation）
Machine used for test: QM90 flash mesuring machine + Coaxial Light
Summary:
All products are circular in shape. Washer dimensions can all be measured. The inner chamfer angle inside the bushing bore cannot be measured. Thickness measurement is required for the parts. It is recommended to make a dedicated fixture to avoid measurement deviation.
If ultra-high throughput is required, the QWS vertical & horizontal all-in-one flash mesuring machine can be adopted to reduce part flipping.
