Connector terminal measurement scheme

Customer Demand

Measure the two-dimensional dimensions of the product

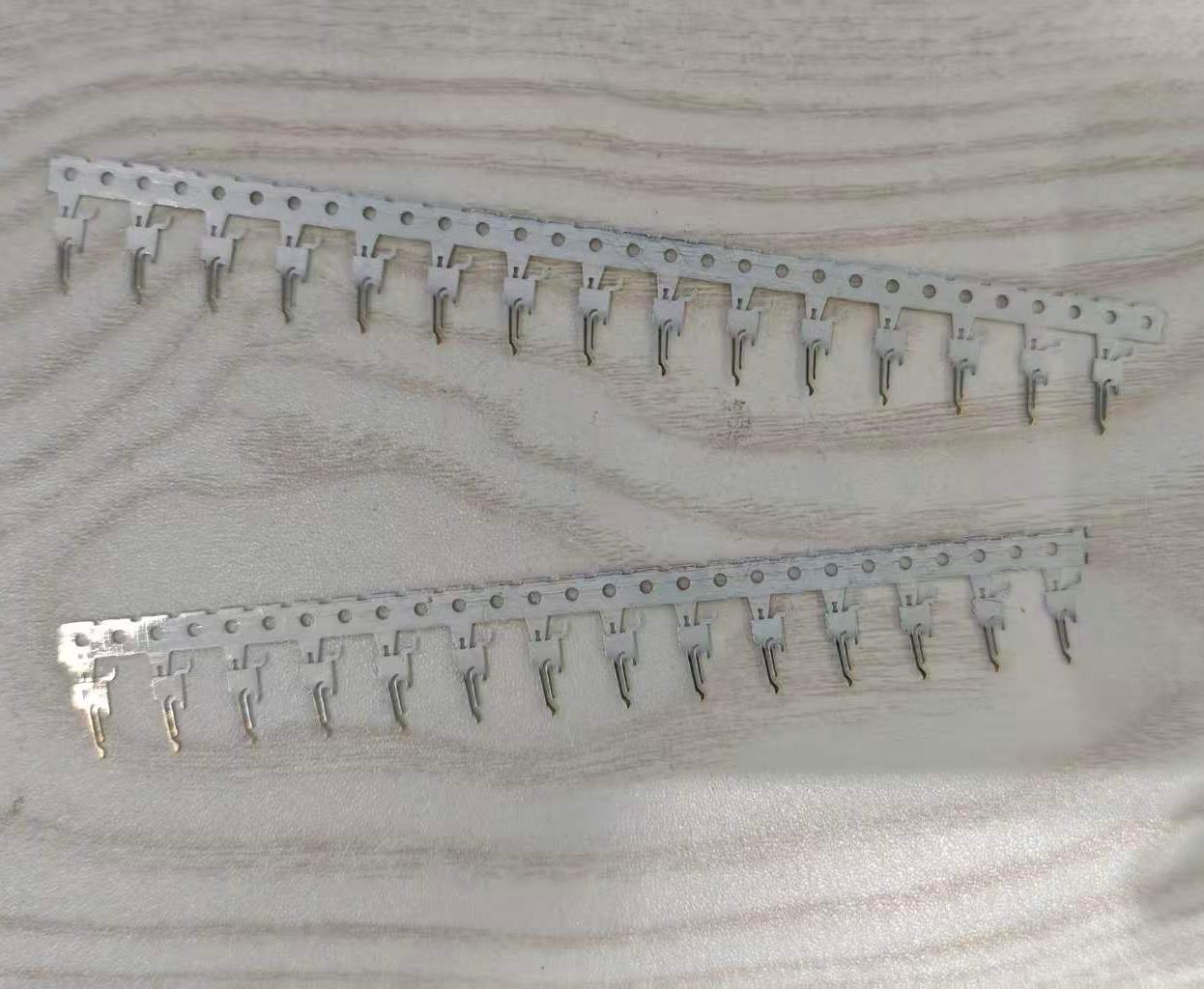

Product physical image

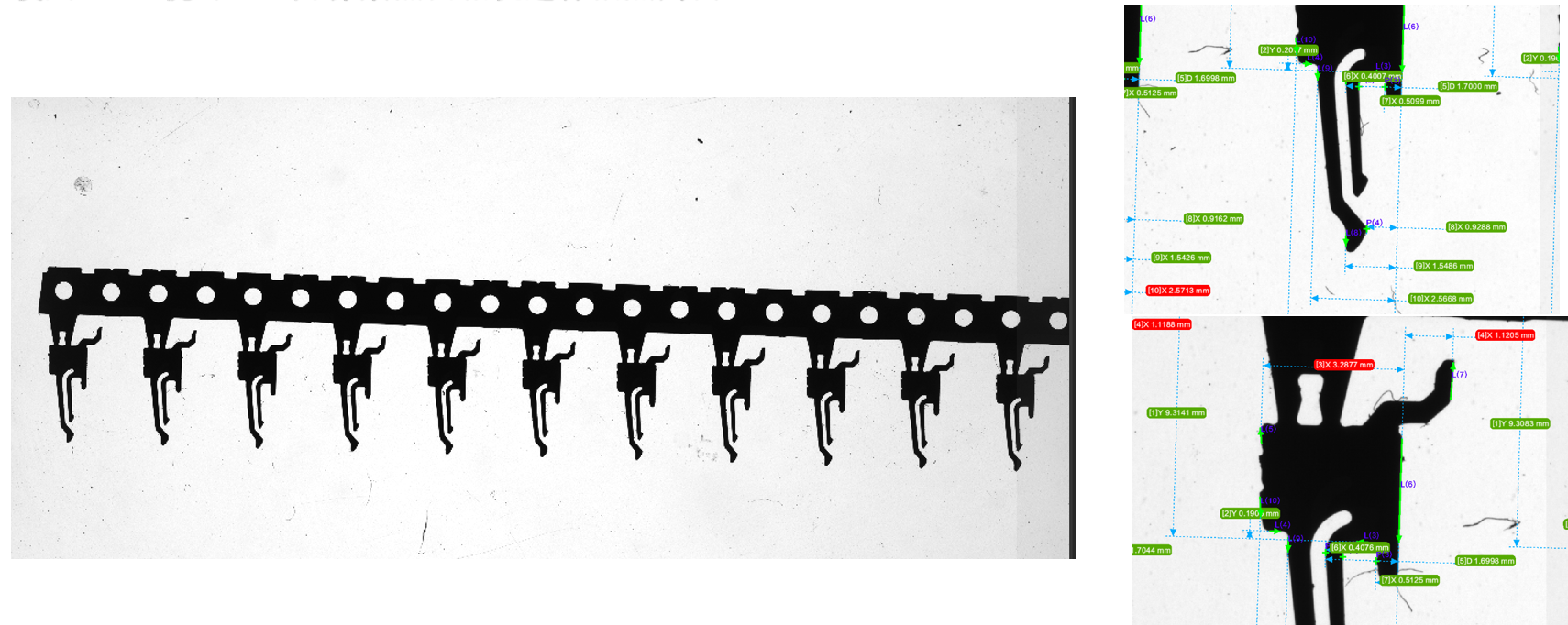

Measuring Result

Test results

1. Measurement method: Use a 55*82 field-of-view 20 million-pixel black-and-white camera for flash measurement.

2.Measurement process video

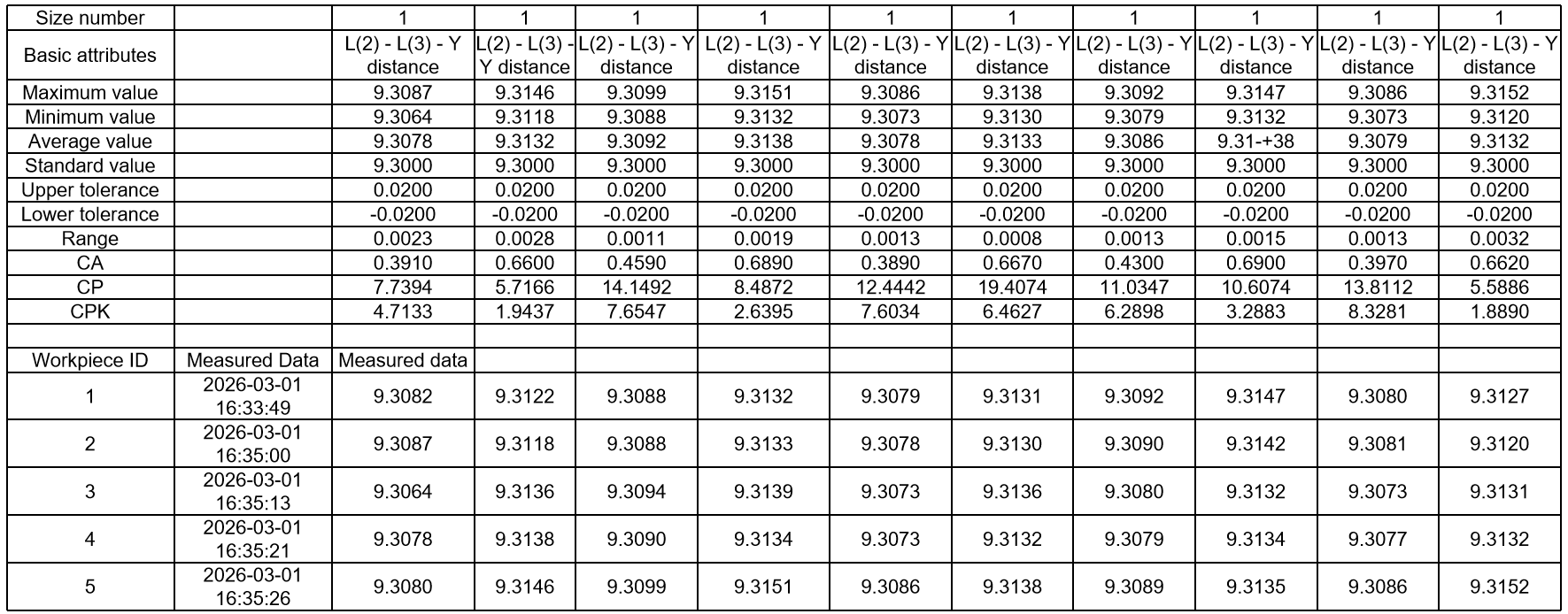

3.Repetitive data (partial data)

Test Conclusion

COBEKK recommends the QM series flash metering instrument, equipped with a 65*43 telecentric lens and a 2000W black-and-white digital camera.
