Dispensing Valve Sealing Plugs Measurement Scheme

Customer Demand

Based on the provided sample, measure the outer diameter of the bottom ring (and possibly the size of the middle outer ring may also need to be tested in the future)

Product physical image

Measuring Result

Test results

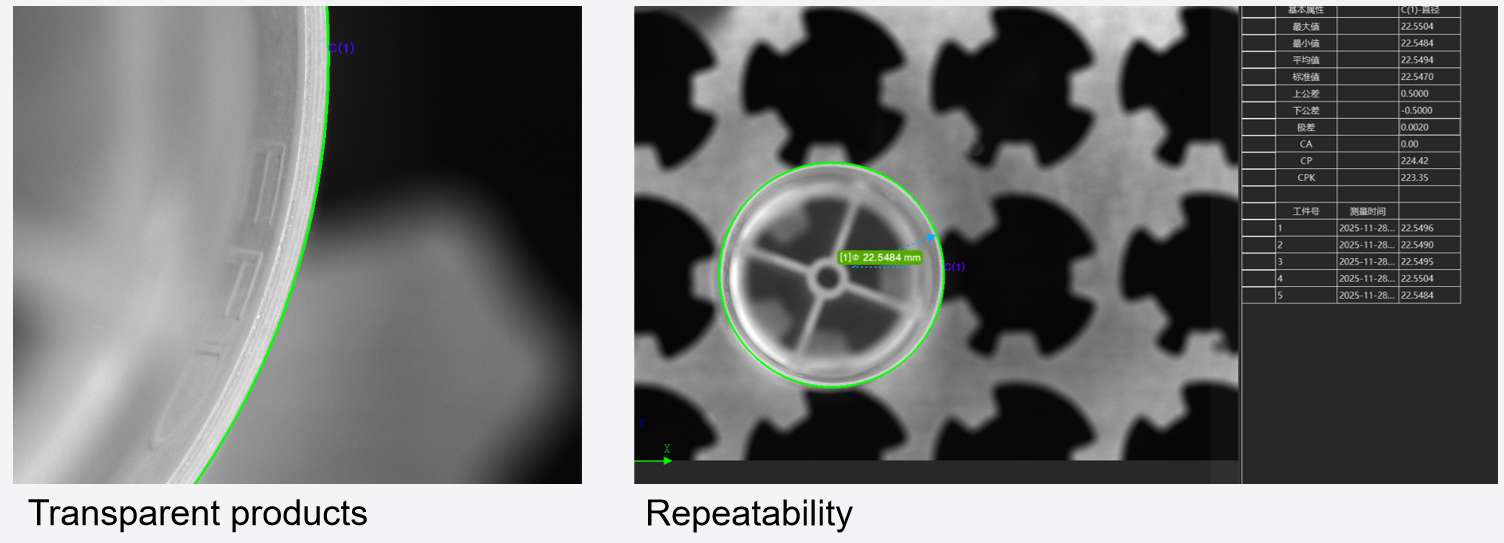

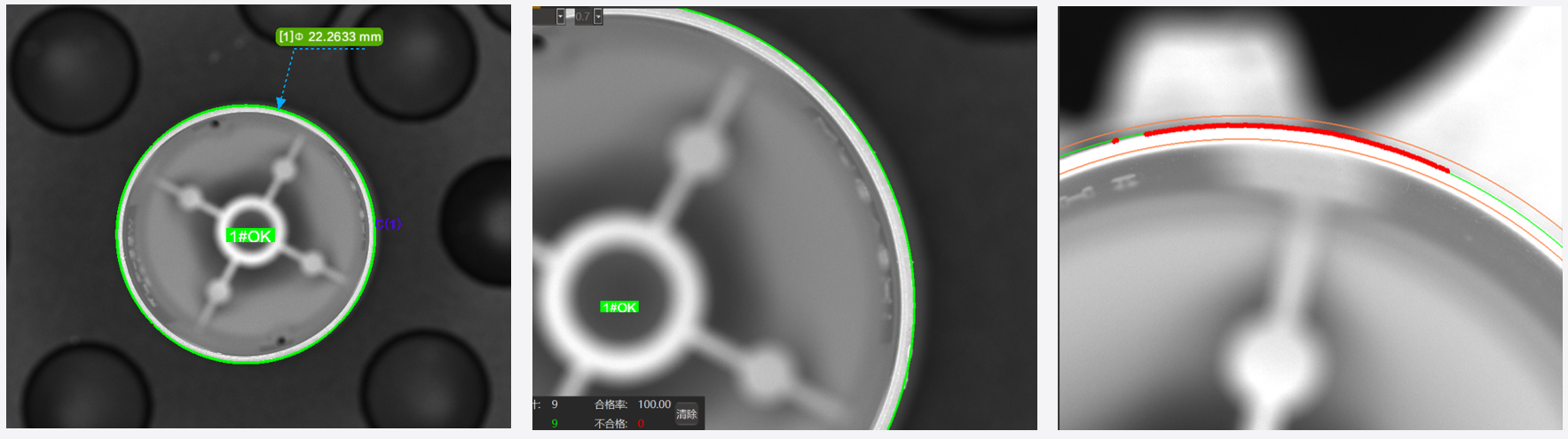

1.Image effect

2.Measurement process video

Transparent part measurement video

Test Conclusion

Machine: Recommended QTS300 mobile flash instrument

Camera: 60 million black-and-white digital camera

Others: It is required to use a probe to measure the diameter of the middle circle. Since the product is a plastic item and is relatively soft, it will deform under force. The measurement error will occur due to the influence of the force when taking the measurement point.
