Die-Casting Housing of Door Lock Body Measurement Scheme
Customer Demand
Based on the provided samples, the corresponding dimensions are measured according to the drawings.The customer measures over 2,000 pieces in one day.

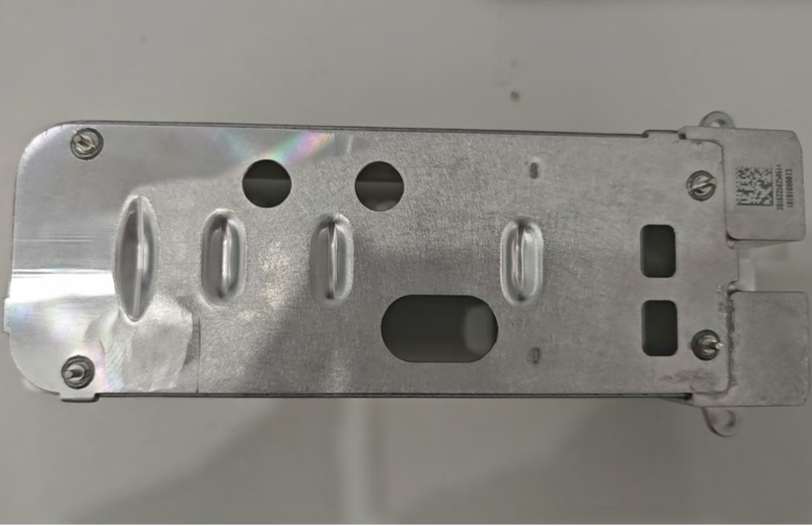

Product physical image
Measurement Scheme for Die-Casting Housing of Door Lock Body

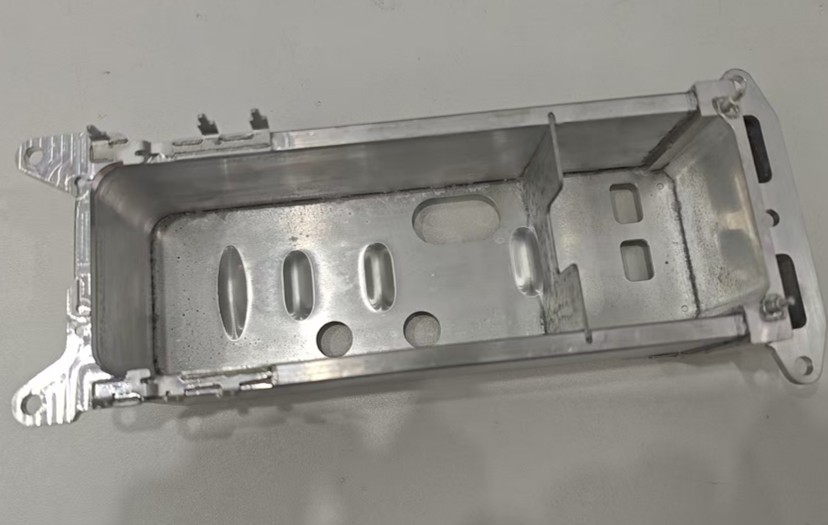

Door Lock Body Dimension Measurement Scheme
Measuring Result
Test results

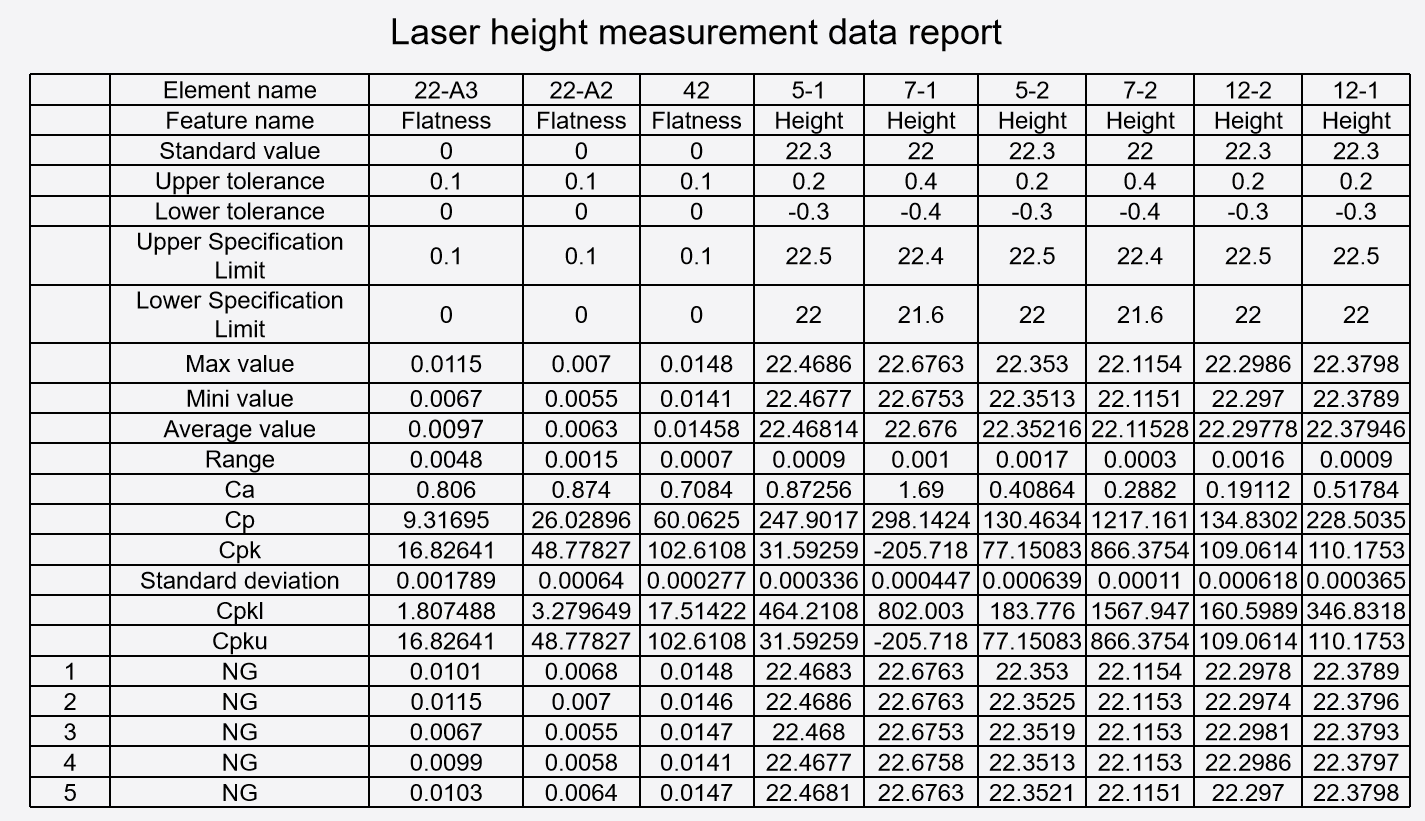

1. Laser measurement process:

.
.

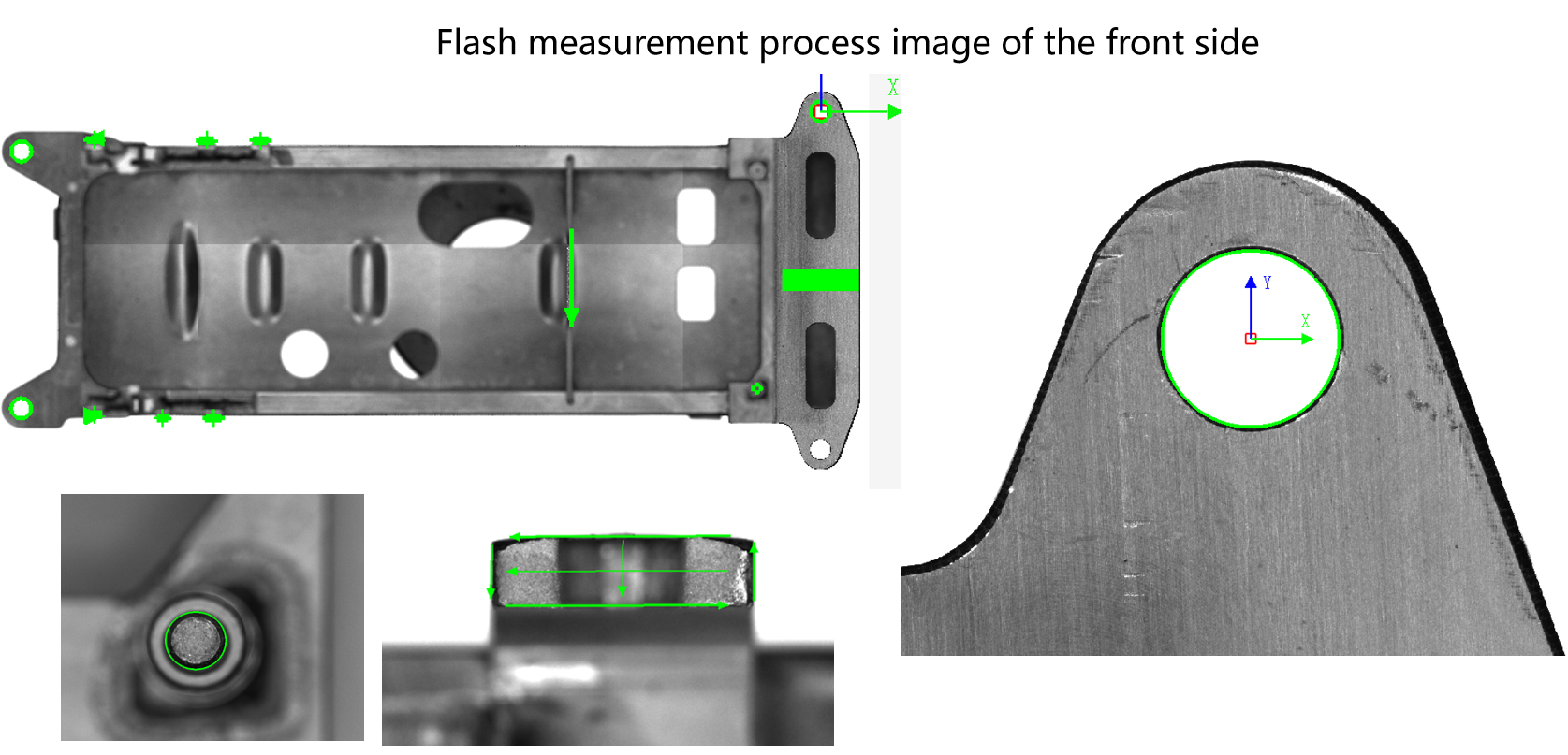

2. Flash measurement process for the front surface:.

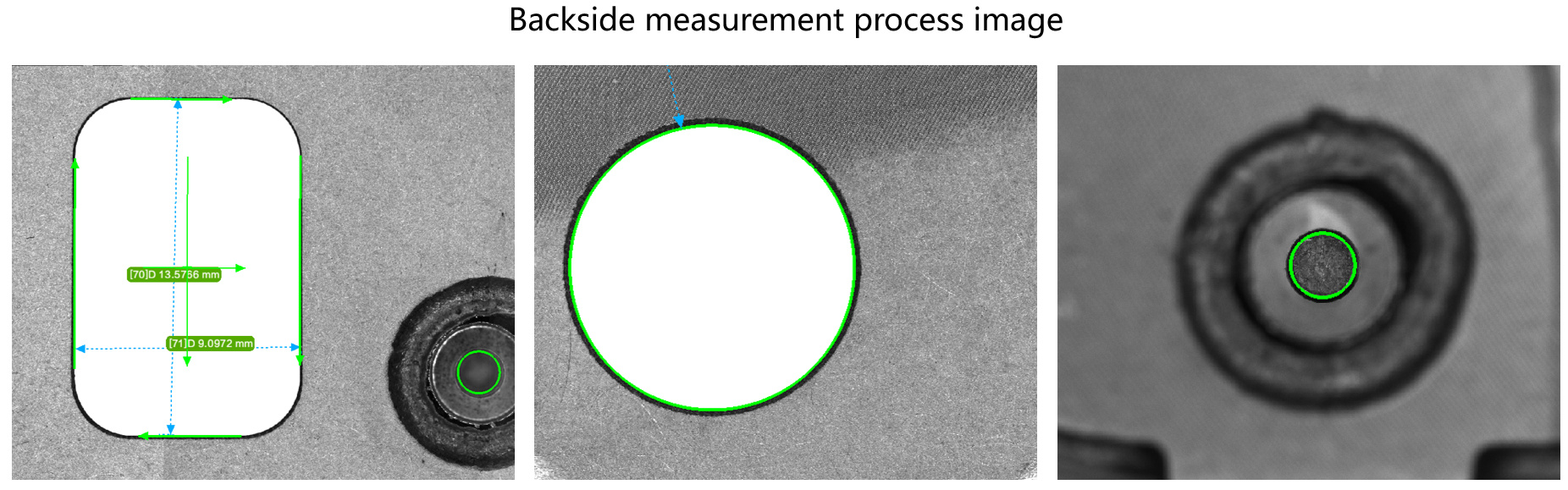

3.Flash measurement process on the back:

.

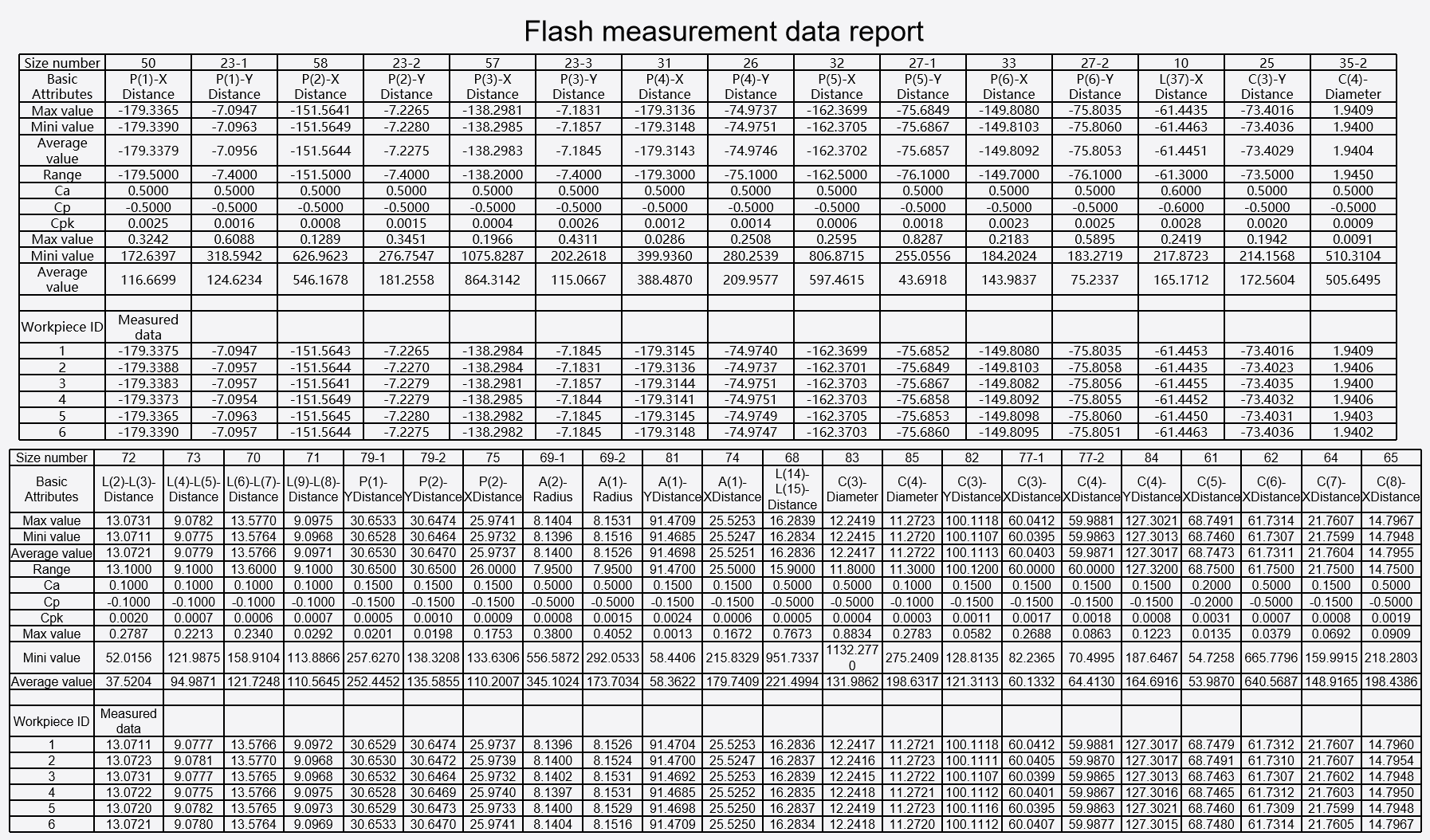

kt05.png3.Measurement data




Test Conclusion

 Machine: We recommend the QT300 one-step flash measuring instrument.

Camera: 20-megapixel black-and-white digital camera with a 65*43 wide-angle lens.

Laser measurement for height dimensions is required to be added.

Currently, the single-sided image measurement data takes 60 seconds for laser and 75 seconds for the camera. Considering the customer's requirement for measurement speed, COBRKK suggests that an 82*55 lens should be configured to reduce the number of splicing and improve the measurement efficiency.
