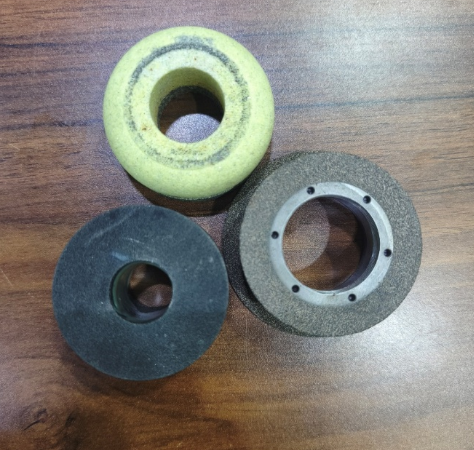

Ⅰ. Image effect
1 . Customer CAD

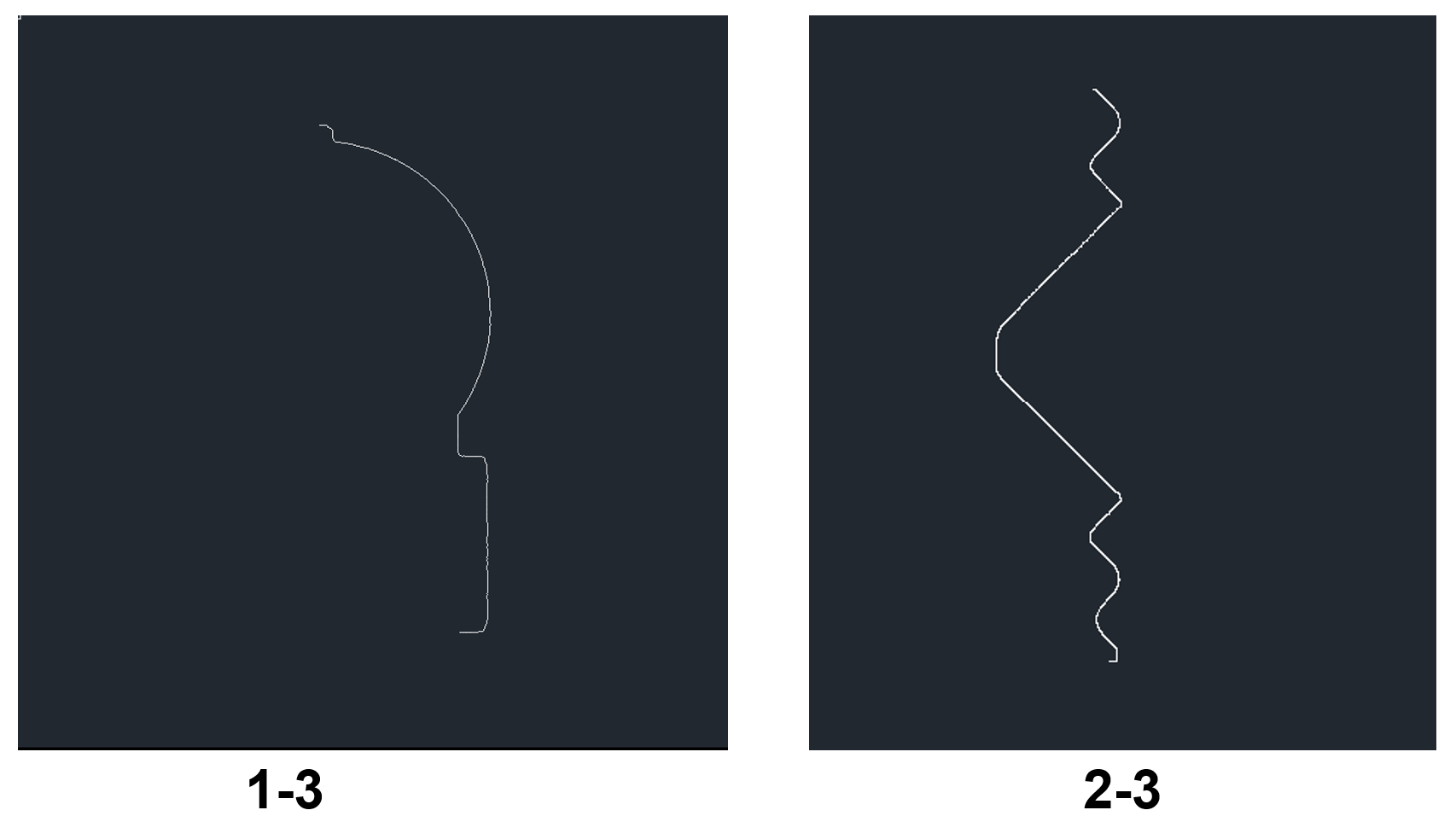

2 . 1-3 Effect picture

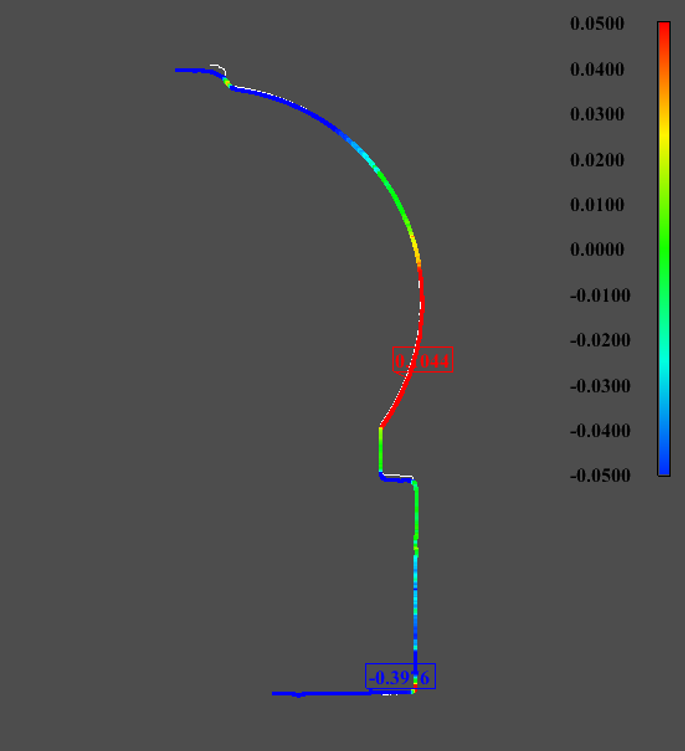

2 . 1-3 Contour effect picture

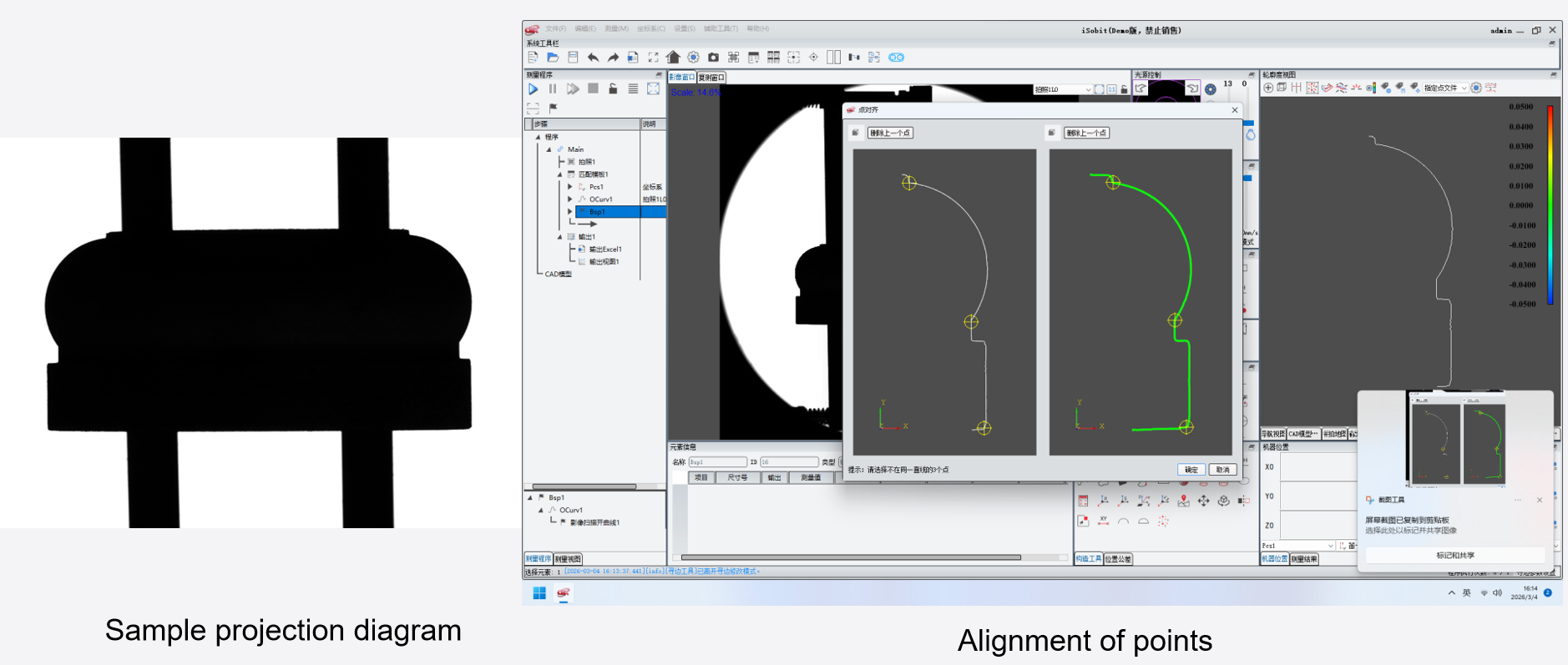

3 . 2-3 Effect picture

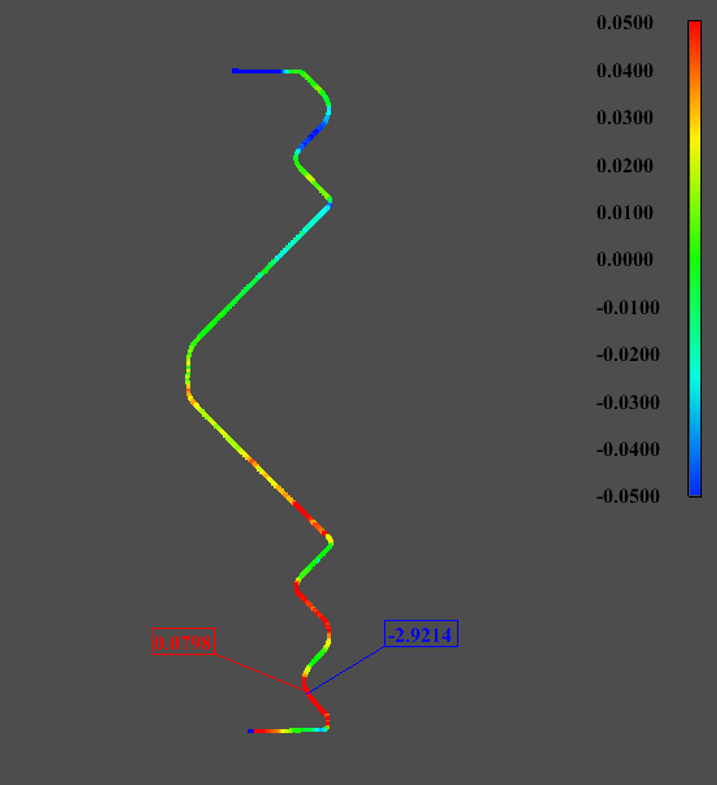

3 . 1-3 Contour effect picture
Ⅱ . Measurement process video
1 . 1-3 Measurement video
2 . 2-3 Measurement video
Ⅲ . Measued data
1. 1-3 Measued data

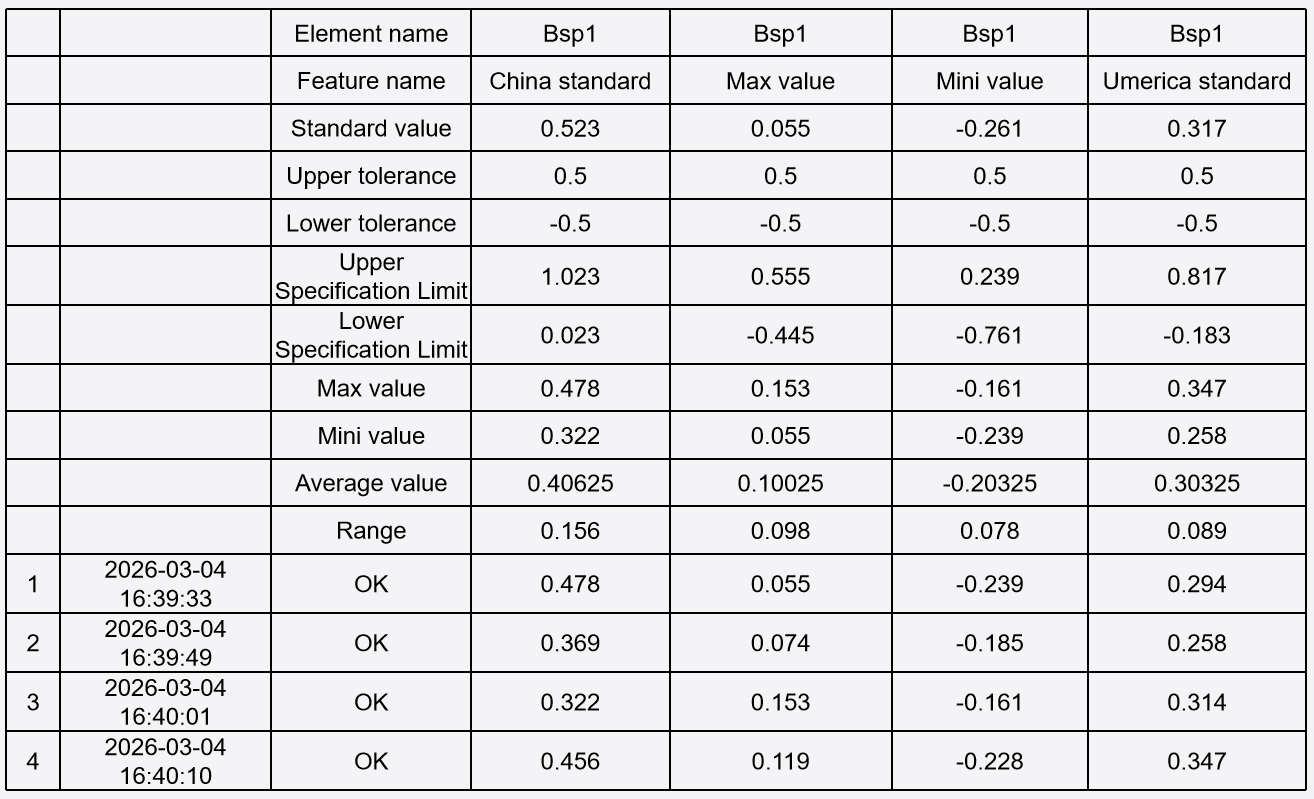

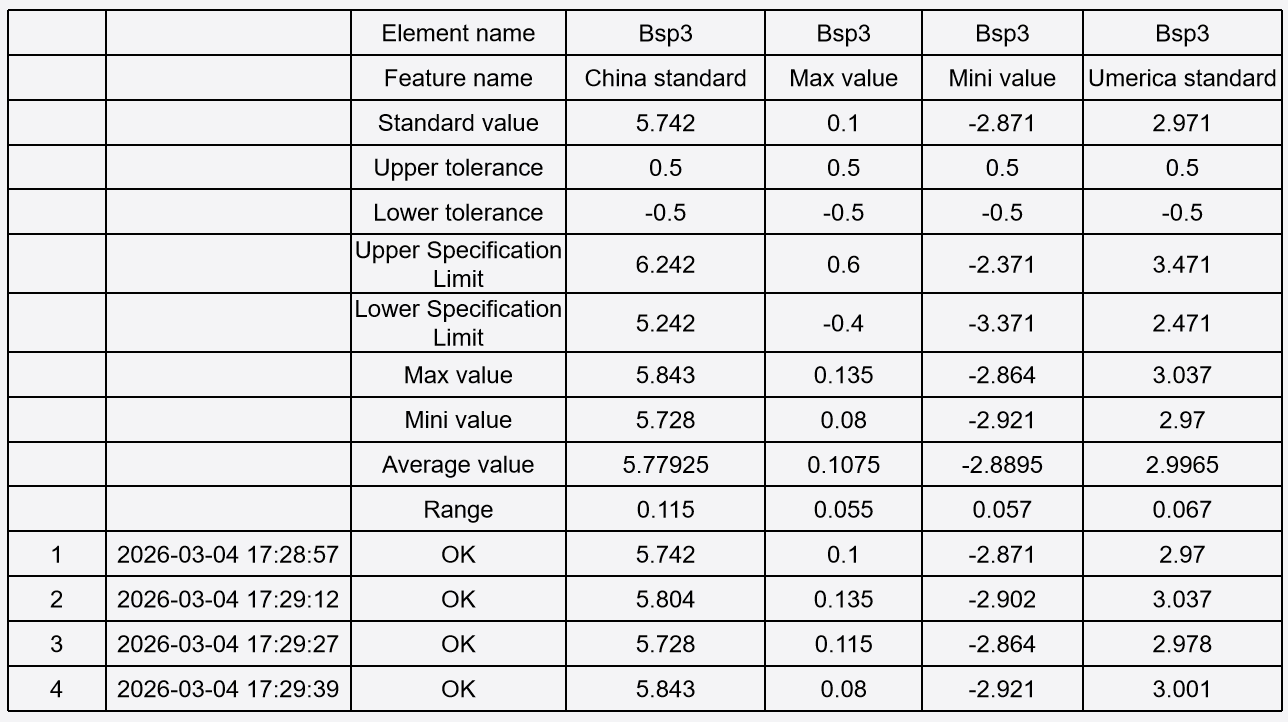

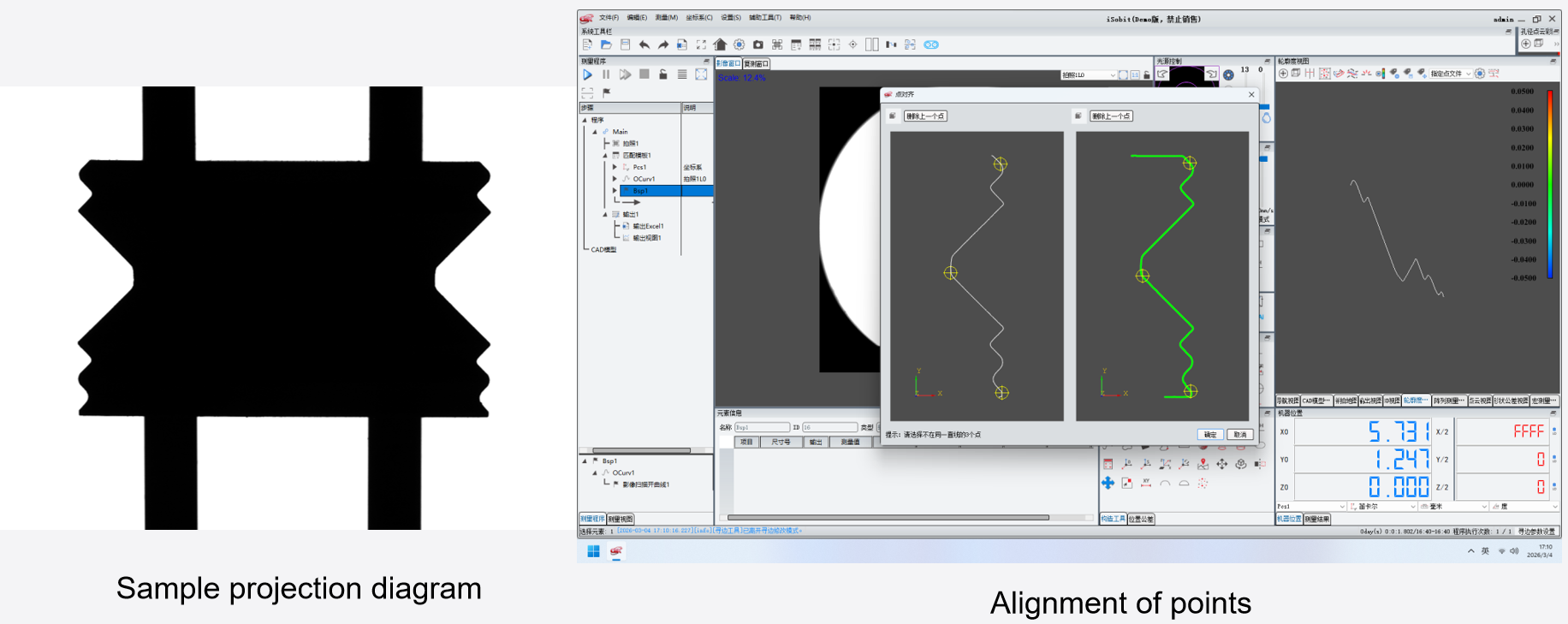

2 . 2-3 Measued data
Machine: QTS300 Lens Field of View: 82x55

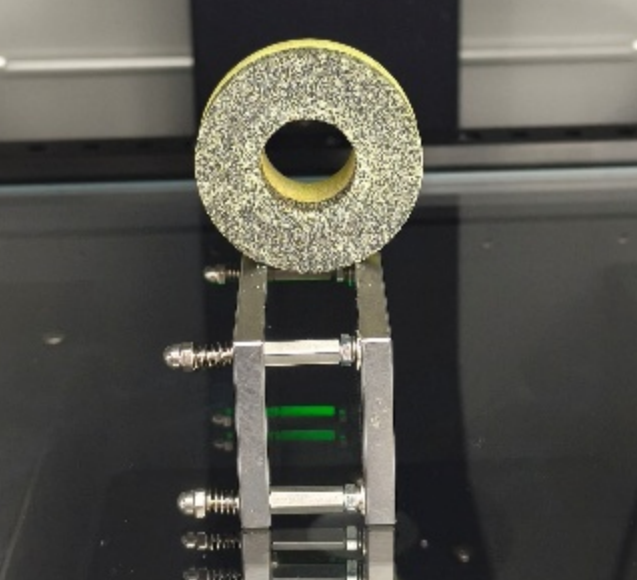

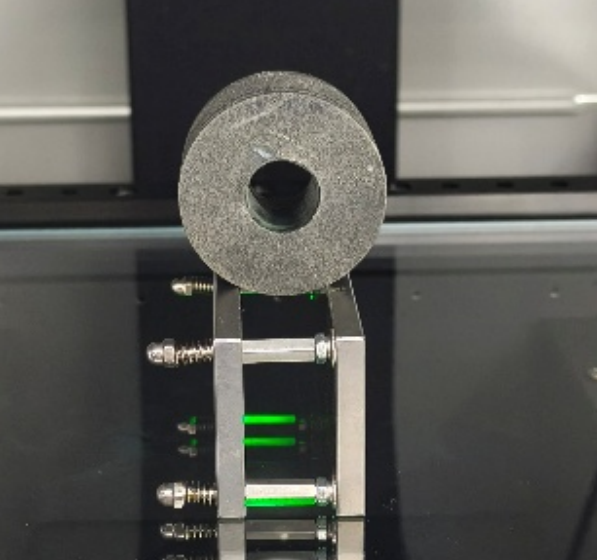

Risk: The sample is a circular product and it is prone to rolling. Therefore, a fixture needs to be made for its fixation. The fixture also needs to be equipped with a rotating axis to achieve a fixed angle. The drawing is not an standard curve, and there is a significant difference between the actual measurement and the sample.
