Ⅰ. Image effect

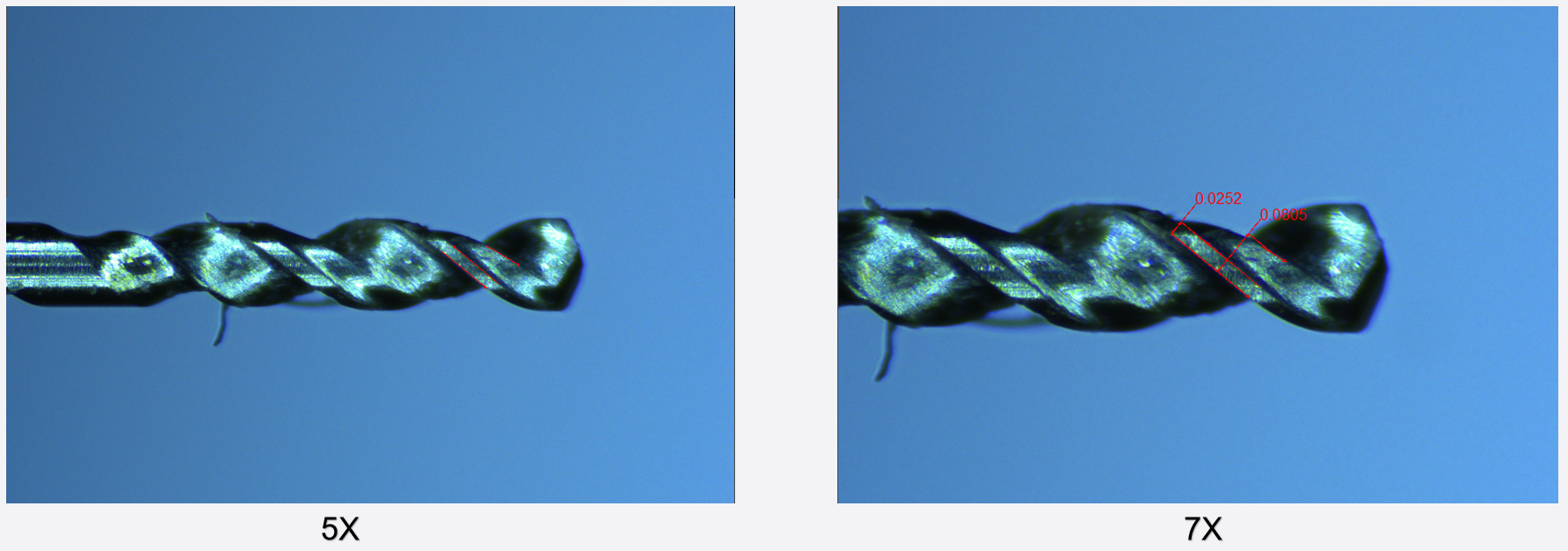

1.The imaging effect observed using the JX3020 metallographic microscope

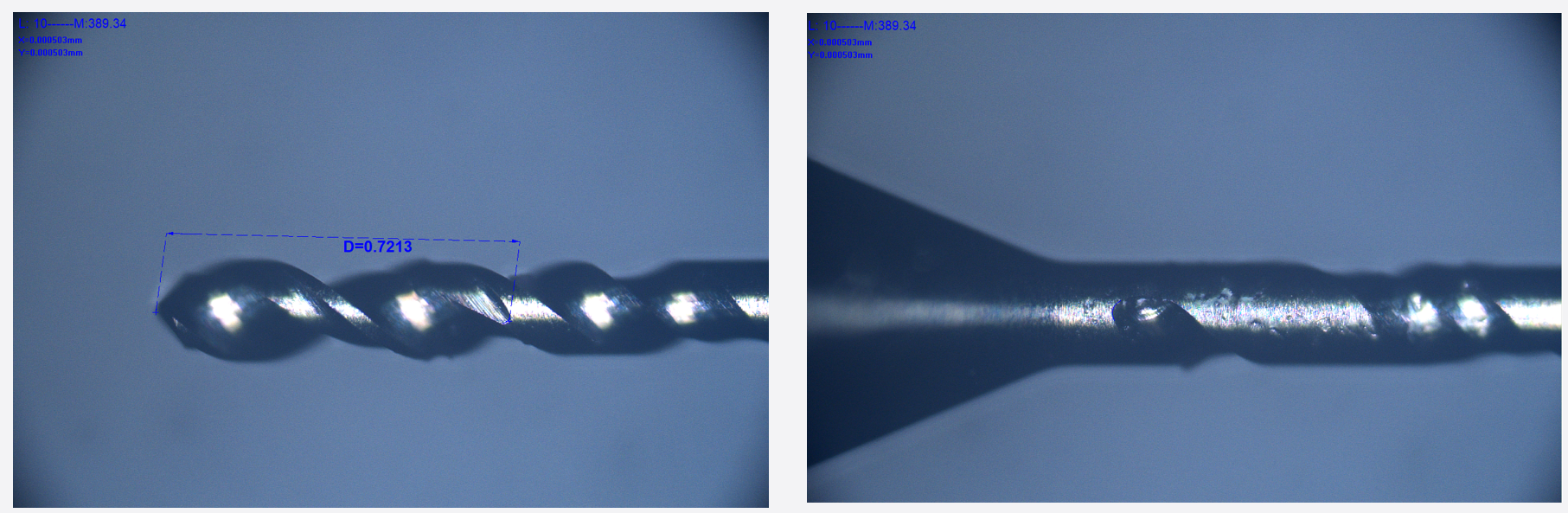

2.The imaging effect observed using a high-magnification imaging instrument
Option 1: Recommend the JX series electric metallographic tool microscope. Conduct the measurement at the 10x objective lens.
Option 2: AC automatic imaging system / S semi-automatic imaging system. The camera is equipped with a 6 million pixel digital camera, and a 0.6 - 8.0 automatic zoom coaxial optical lens.
Measurement precautions:
When measuring with the product fixed by a rotating fixture, due to the different placement angles of the product, the fixture cannot automatically rotate to the measurement angle. Manual intervention is required to confirm the rotation angle.
