Sideflap Safety Clip Measurement - Anti-Reuse Needle Inspection

Sideflap Safety Clip Measurement Solution

Customer Demand

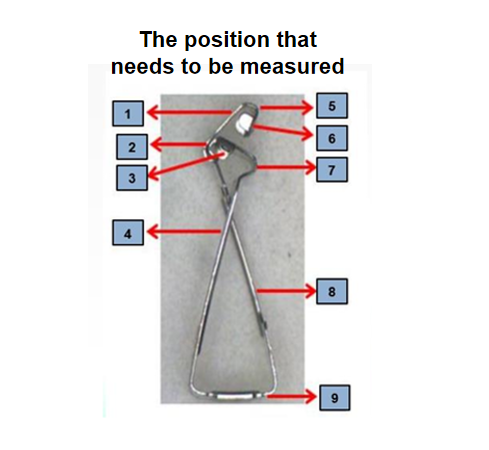

Measure according to the size of the product position marked by the customer.

Product physical image

Measuring Result

Test results

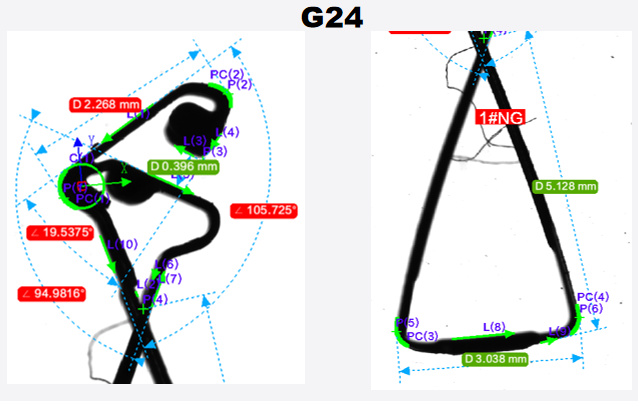

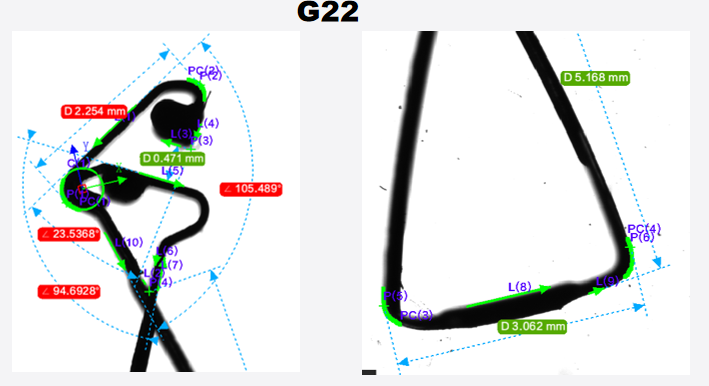

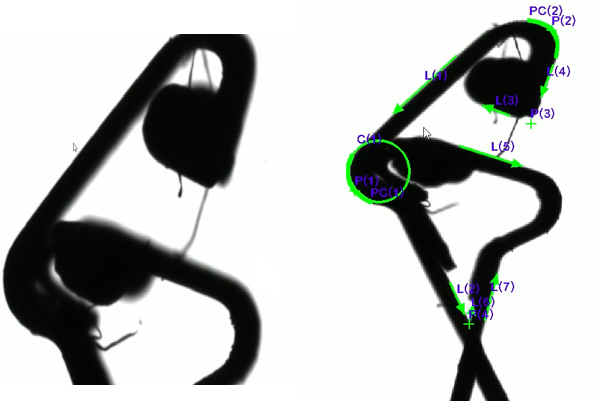

1.Image effect

2.Measurement process video

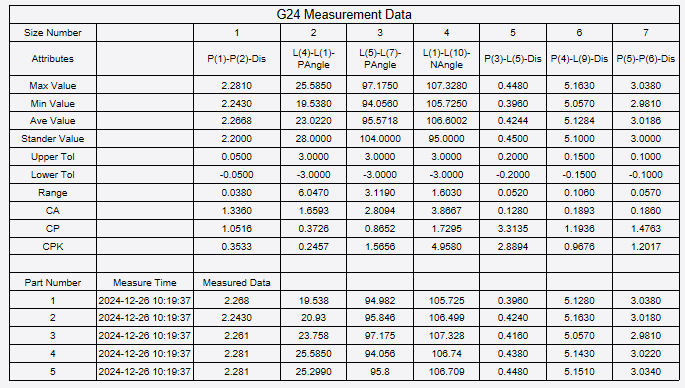

3.Measured data

Test Conclusion

COBEKK recommends using the QMS series of measuring products for their dimensions.

Note:

① The measurement areas on the head are not on the same focal plane. Therefore, the focus needs to be adjusted up and down during the measurement process.

② If there are many burrs on the head, it may cause the measurement points to shift, resulting in measurement errors.

③ The sample is relatively soft. During the loading process, it may deform and cause measurement errors in size.
