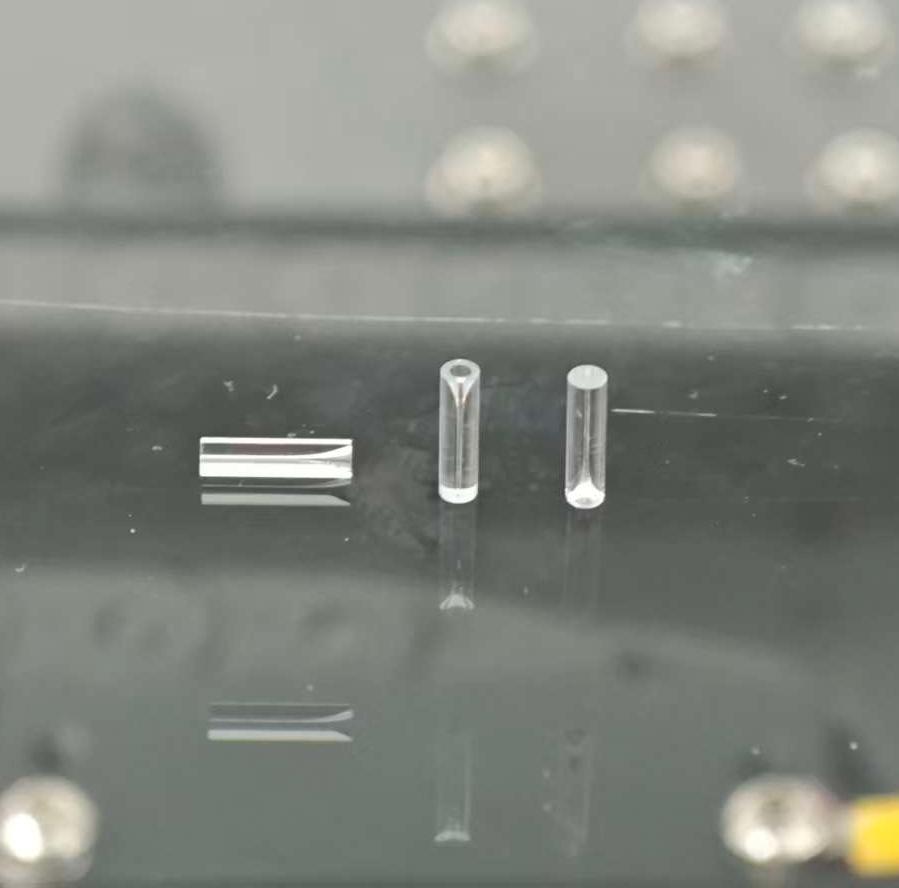

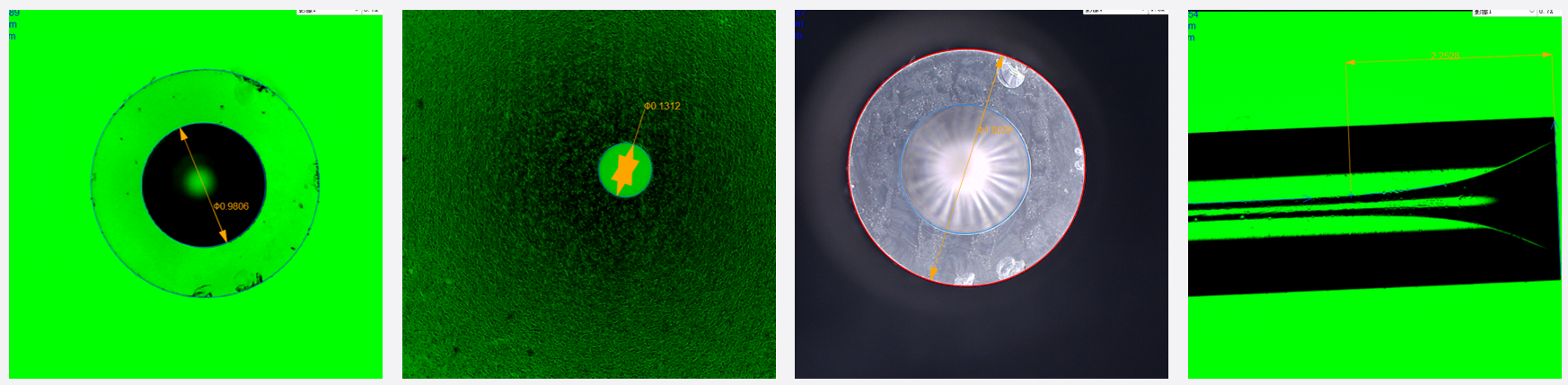

Ⅰ. Imaging effect
Ⅱ. Measured data

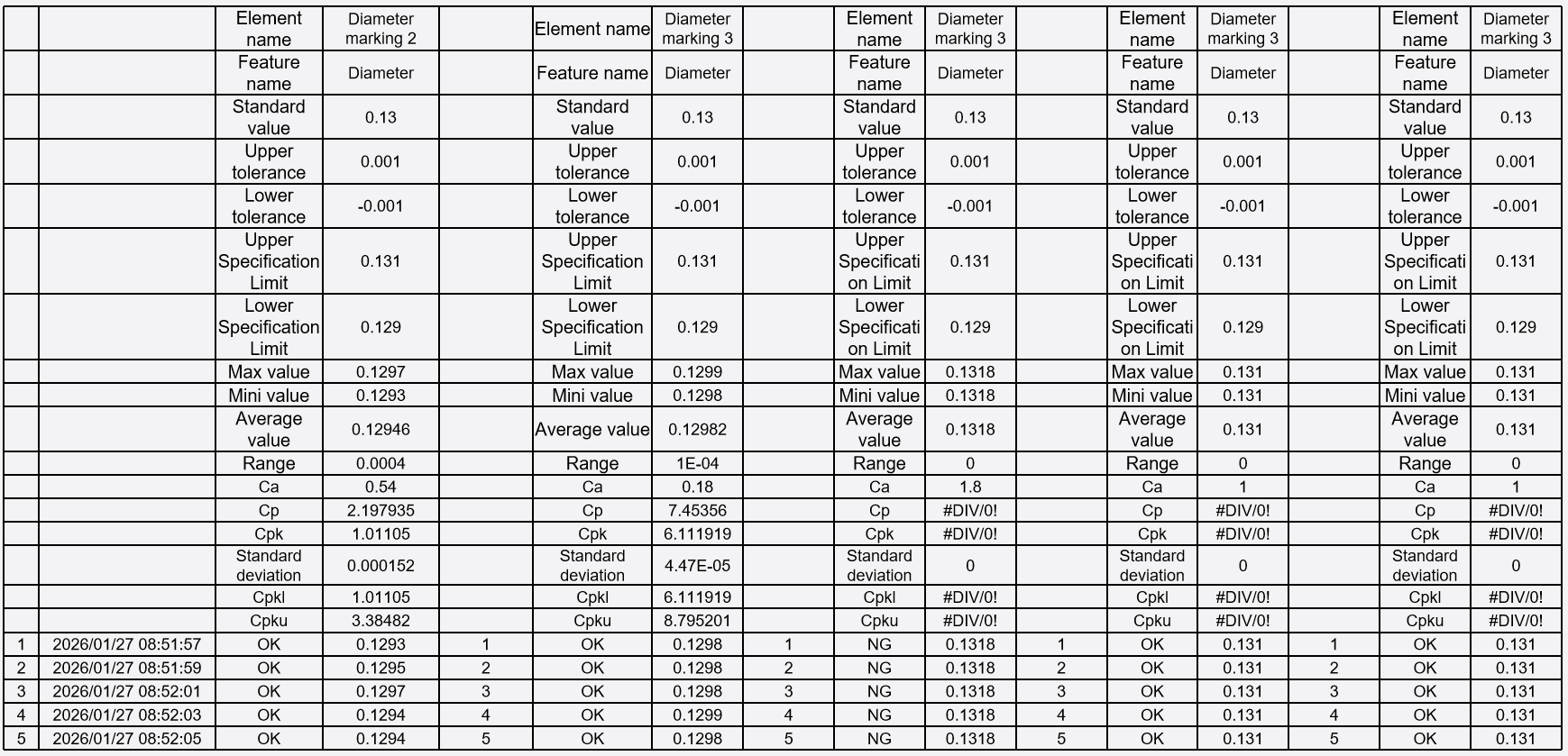

1.Multiple sets of data for the diameter of the internal fiber channel (core hole) of the capillary

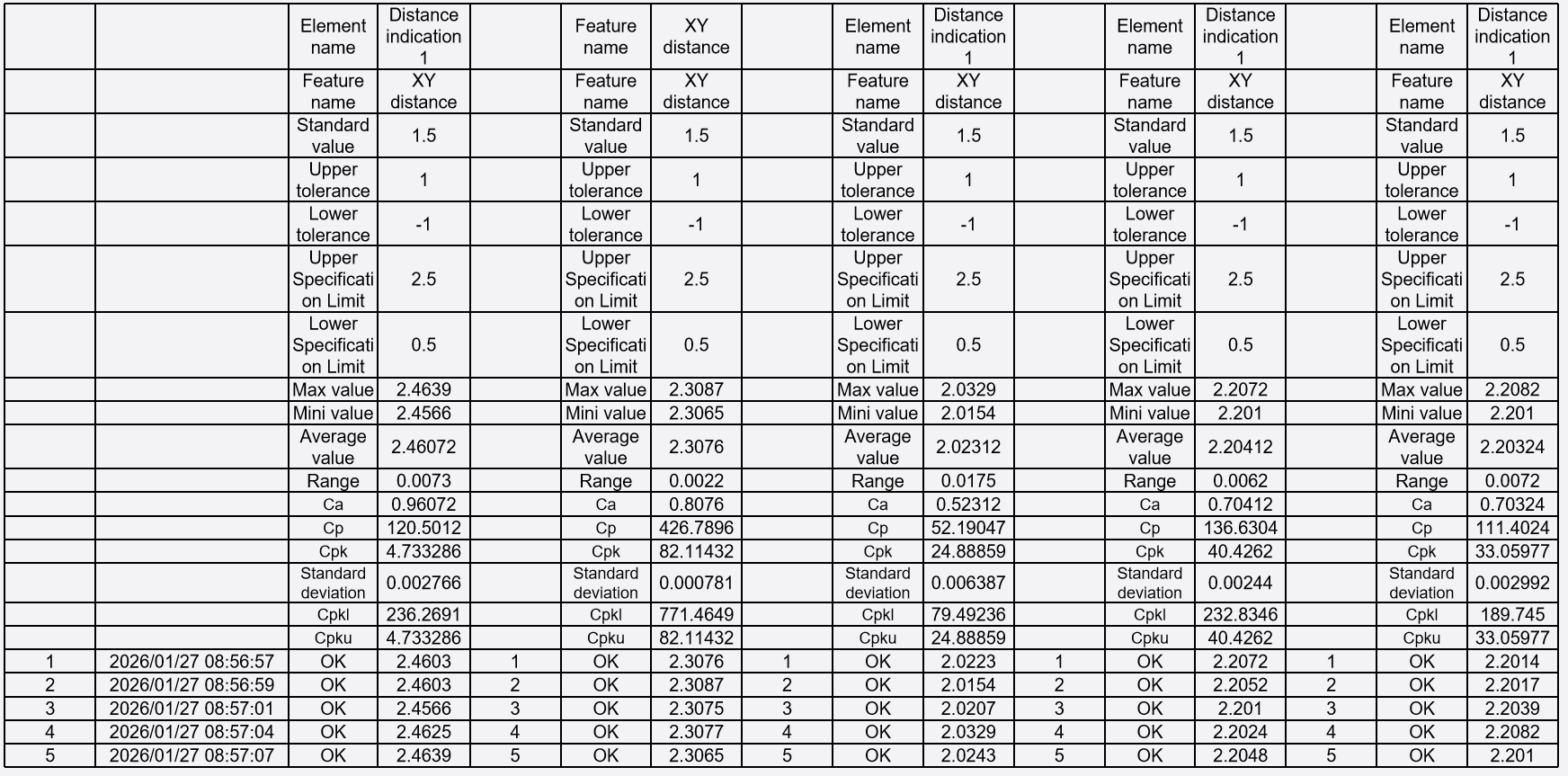

2.Multiple sets of data for the length dimension of the capillary tapered / closing section

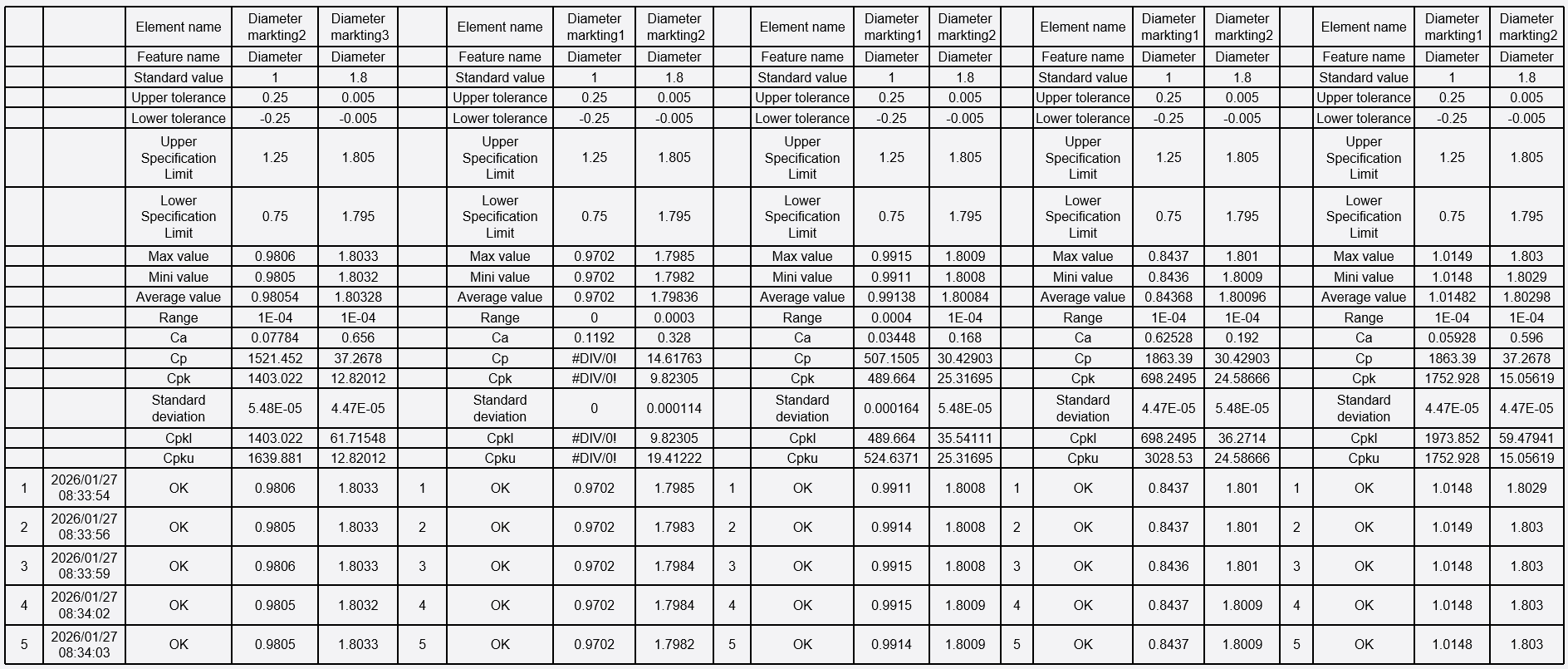

3.A series of data regarding the outer diameter of the capillary and the outer diameter of the installation or clamping section of the capillary
Risk item: The length and size of the capillary conical section / the narrowing section are affected by the inconsistent actual product arc curvature at this position. As a result, the intersection point where the arc edge and the straight edge are tangent is influenced greatly by the arc curvature, and the resulting size data has a large deviation.
COBEKK recommends using the AC300 fully automatic image measurement instrument for the measurement process.
